Modulized frame, Easy maintenance after opening the door of cabinets. Easily move the machine, Friendly control panel.
1.Using PLC temperature control system, LCD touch screen display, intuitive and convenient operation, accurate temperature control.
2.The PLC control system of this machine is also attached with glue spraying control program, without external glue spraying controller, withautomatic speed and glue quantity tracking funclion, which can easily realize various glue spraying requirements of customers' products inthe assembly line and automatic equipment.
3.The desian of proaressive preheat meling tank,interal coating of imported DuPont Teflon anti sticking coating, low energy consumptionreduce qlue carbonization phenomenon, can maintain good glue quality.
4.Heat preservation and standby seling funcion can set the heat preservation temperature according to the actual production requirementsprevent glue carbonization, reduce power consumption, and shorten the heating time due to shift change or noon break.
5.When the actual temperature exceeds the set value, the main power supply will automatically turn off.
6.Timing switch function, namely 7-day time control function. The machine can be set to run and shut down automalicall according to theworking hours of workers every day.
7.The doublelayer 100 mesh filter is adopted to reduce the clogging of the nozzle. The new guiding refux device makes the glue pressureadiustment more accurate and stable.
8.The frame type self buckle shell design is beautiful and easy to repair and maintain.
9.High precision imported gear pump, stable output and high pressure.
10.The inverter proteclion funclion, when the actual temperature of the rubber tank does not reach the set temperature vale, the motor doesnot work. plays a proleclive role, prolongs the service life of the equipment and avoids the economic losses caused by the ileaal operaiorofemplovees.

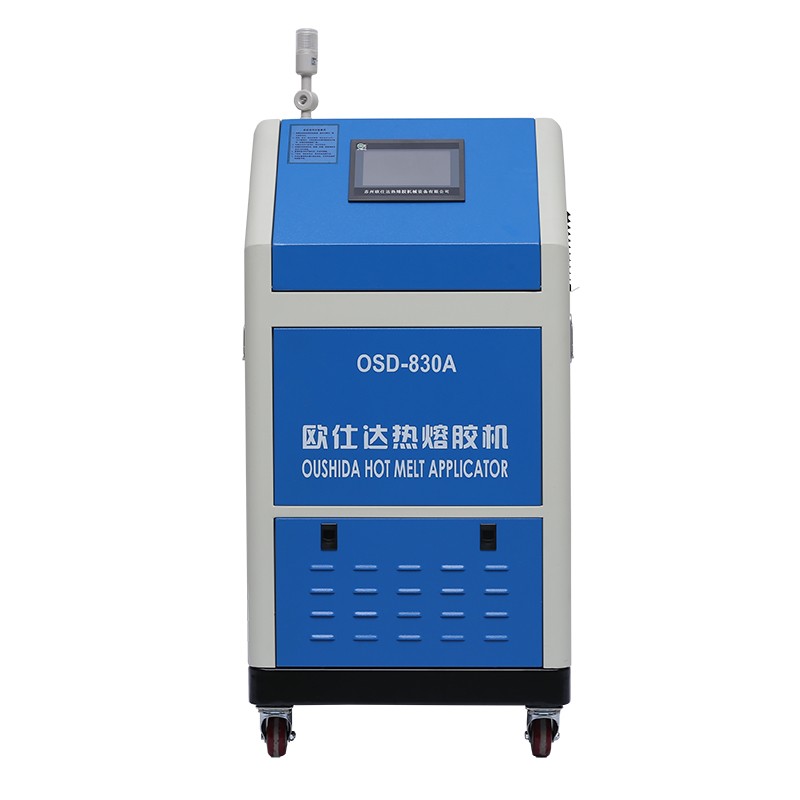

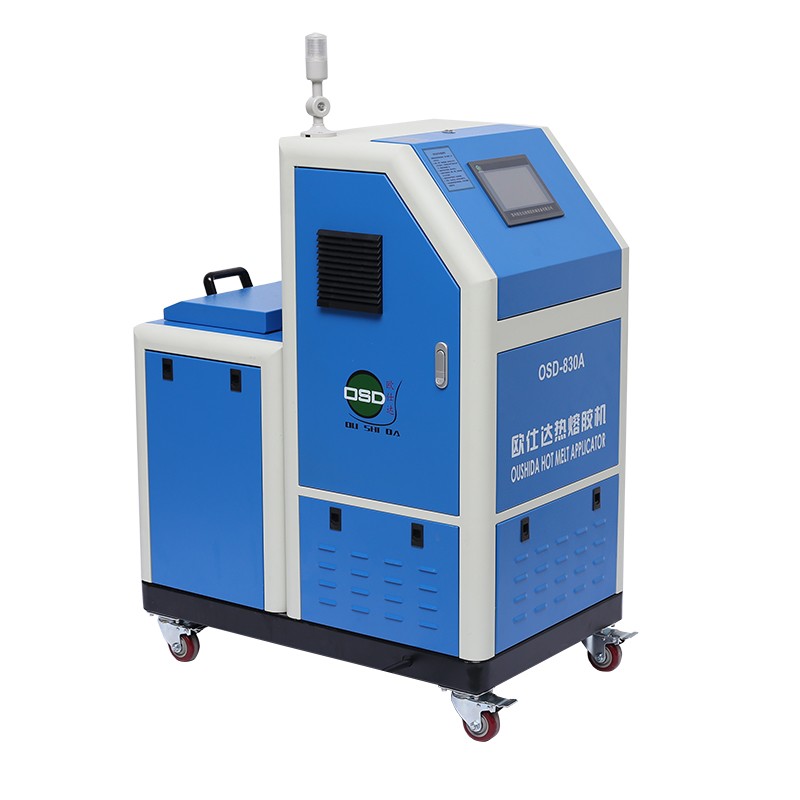

Model | OSD-830A |
Voltage | 380V |
Frequency | 50/60HZ |
Power | 6500W |
Hopper Capacity | 30kg |
Melt Rate | 30kg/h |
MAX.CPS | 1,000-20,000CPS |
Rang of Temperature | <=250℃ |
Weight | 120kg |
Overall Size | 890mm*560mm*1040mm |
Up to hoses number | 1-4 |
Sensor | K style |
Gear Pump | 12cc/Tr. |
