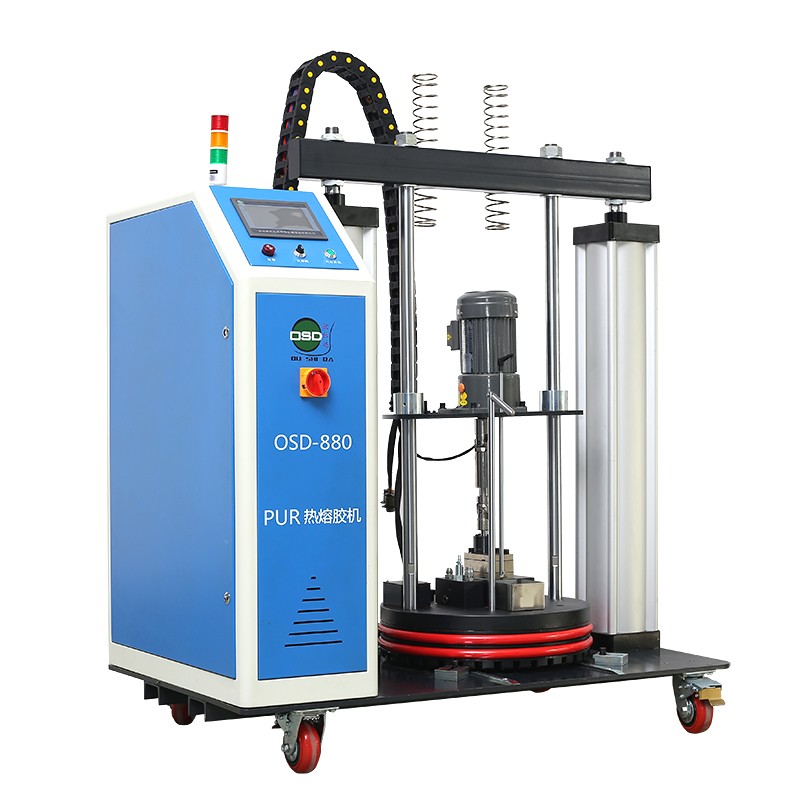

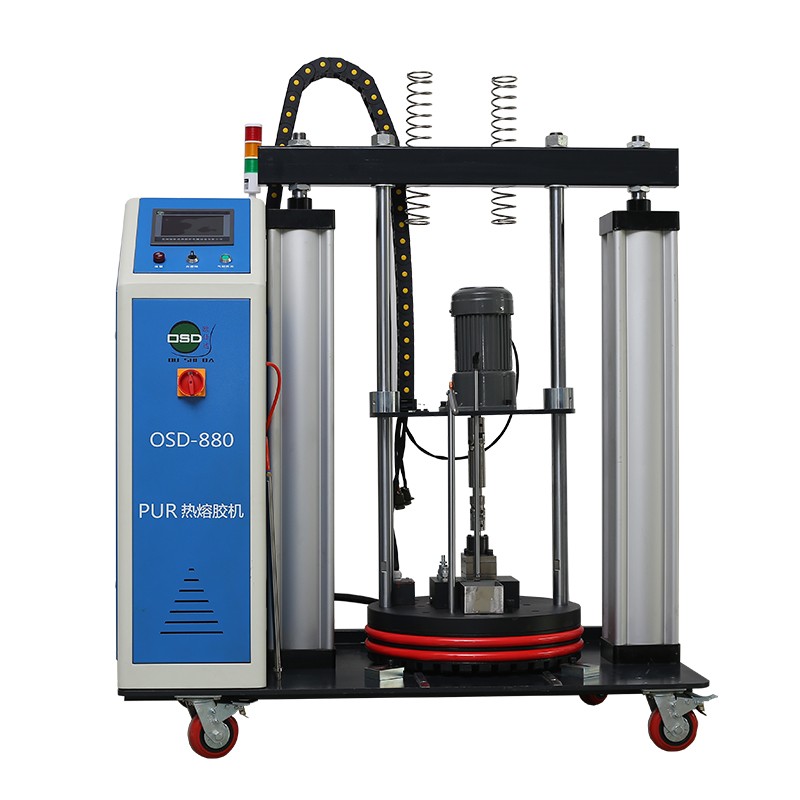

OSD-880 PUR Hot Melt Glue Machine

Widely used in automobile headlight and taillight, windshield, car-door manufacturing and auto-interior, air filter, caps, footwear making, electronic toys, medical protective clothing, non-woven composite and other breathable lamination products. Supporting equipment to the Hot melt adhesive spraying and roller coating composite equipment.

Share this:

Features

1. The structure of the whole machine adopts ergonomic design scheme, and the mechanical and elecrical control system are designed independently, which has the characteristics of reasonable structure and convenient operation and maintenance.

2. The interal space of the whole machine design is increased,so that there is enough heat dissipation space in the electronic control box,greatly reducing the damage of electronic components and power loss.

3. The gear pump and motor are connected by universal joint. Its funcion is to make the included angle at both ends of the transmission shaft equal, ensure that the instantaneous angular velocity of the output shaft and the input shaft is aiways equal, and ensure the stabilty and uniformity of the rubber machine in high-speed operation.
4. The pressure plate is made of aluminum alloy precision casting, processed by precision machining CNC  technology, and the surface is processed by deep penetration sintering of DuPont Telfon. It has the advantages of high coating strength,not easy to fall off, and greatly reduces the carbonization of hot melt adhesive.
5. The main engine adopts high-precision return valve (the sensitivity of return valve is ±1 bar, which is equipped with locking function to avoid damage to equipment or personnel safety caused by misoperation. The filter design of the whole machine adopts heavy multi-layer filtration, which can prevent pur glue from blocking due to overdue and suspicious fixation.

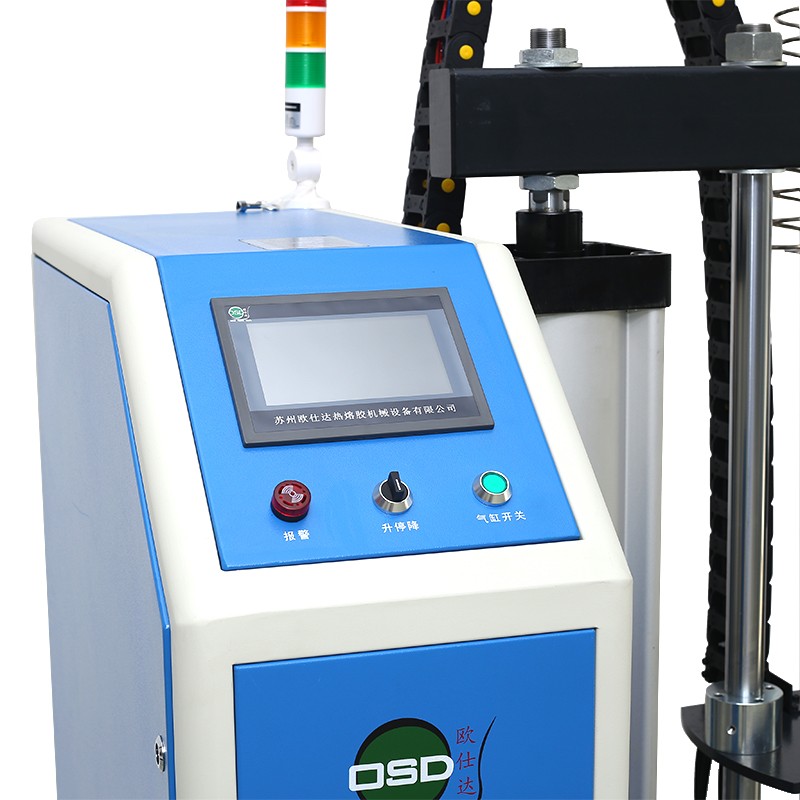

6. The temperature control system of the main engine is controlled by the combination of full touch screen module temperature controller, with PID self-tuning adjustment function and Chinese and English operation interface.
7. The K-type platinum metal temperature sensor is used, and the delection accuracy is ± 1 °C
8. The gear pump adopts 300CC large flow metering pump to ensure the stability of rapid transportation.
9. The whole machine adopts high temperature resistant and fireproof conductor, which improves the safety of the equipment.
10. The host control unit is equipped with automatic tracking system, high-precision signal acquisition, special anti electromagnetic interference design and intenal over-current and voltage protection to ensure the stable and reliable operation of the system.

Technical Parameters

ModelOSD-880
Voltage380V
Frequency50/60HZ
Power19kW
Use Air 0.4~0.8Mpa
Melt Rate120kg/h
MAX.CPS2,000-20,000CPS
Rang of Temperature<=250℃
Weight300kg
Overall Size1500mm*900mm*1850mm
