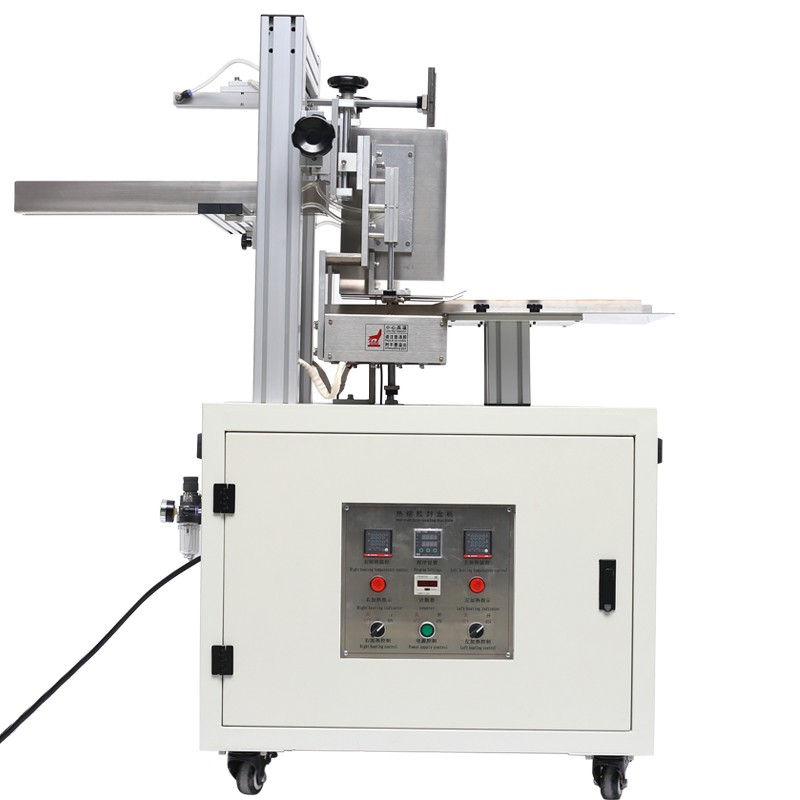

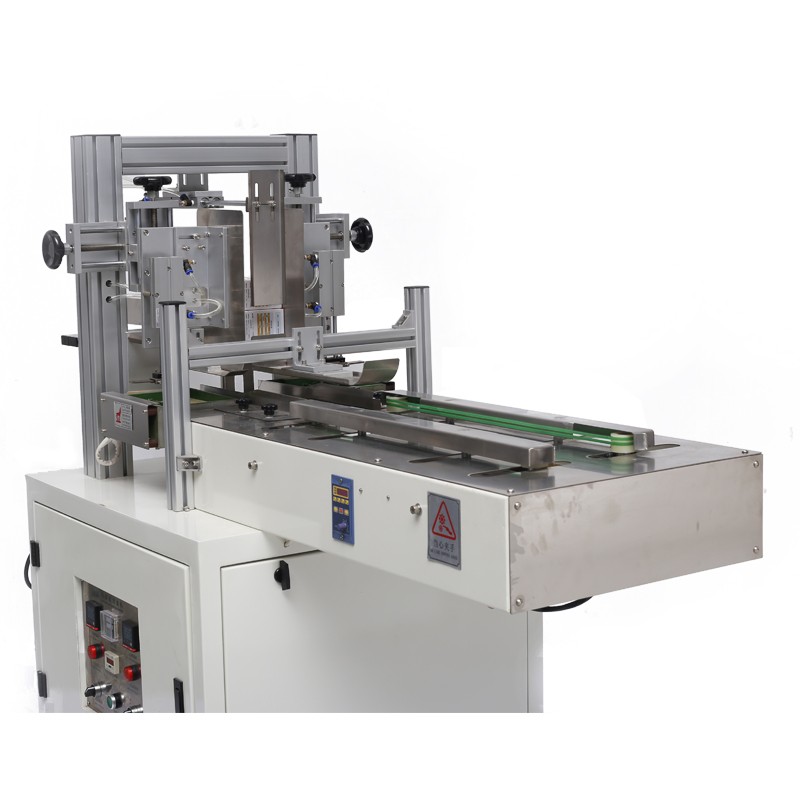

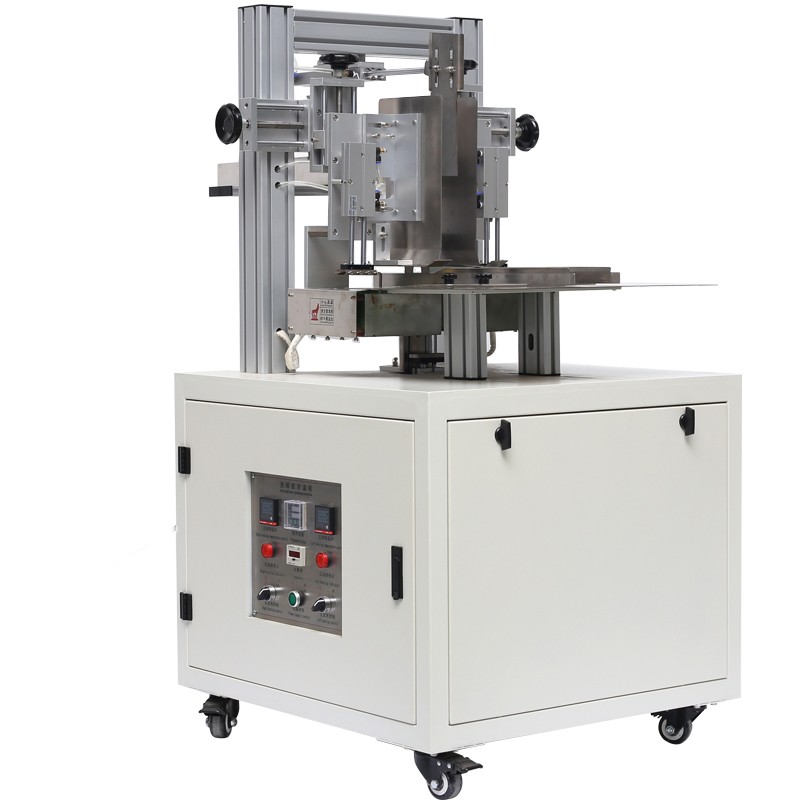

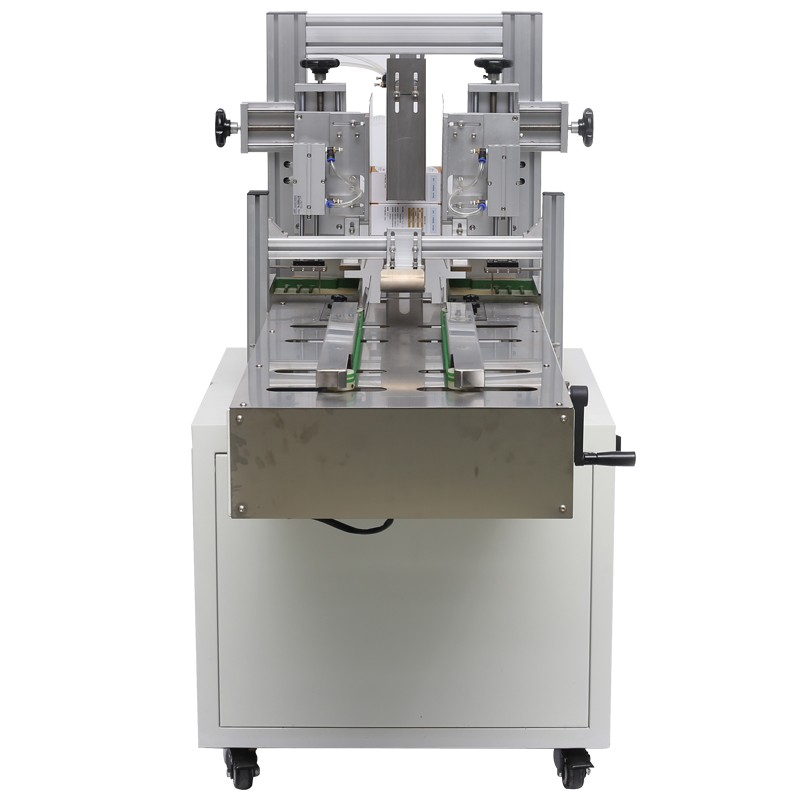

OSD-812Hand Push/Semi-automatic Hot Melt Box Sealing Machine

Adopt PID digital temperature control in Chinese and English, intuitive and convenient operation, high-precision K-type temperature sensor, accurate temperature control. Progressive pre-heating melting tank design, first into the first melt, coated with Teflon anti-stick coating, energy consumption, reduce the phenomenon of plastic carbonization, can maintain the best quality of glue.

Share this:

Features



Adopt PID digital temperature control in Chinese and English, intuitive and convenient operation, high-precision K-type temperature sensor, accurate temperature control.

Progressive pre-heating melting tank design, first into the first melt, coated with Teflon anti-stick coating, energy consumption, reduce the phenomenon of plastic carbonization, can maintain the best quality of glue.

Each temperature zone independently controls temperature regulation, segmental heating, temperature zone parameters, and Chinese digital cycle display.

Heat preservation standby setting function, according to the actual production requirements to set the insulation temperature, to prevent rubber carbonation, External chassis design, beautiful and generous, but also easy to repair and maintence.

The glue spraying speed is fast, the strength is strong, stable and even.

The plastic way: spiral spray and point, hit the strip.


Technical Parameters

ModelOSD-812Hand PushOSD-812 Semi-automatic
Production speed40-60 boxes/min40-60 boxes/min
Packing box specifications(length*width*height mm)(80-300)*(50-200)*(15-120)(80-300)*(50-200)*(15-120)
Installed power2.4kw(220v 50Hz)2.6kw(220v 50Hz)
  Air source   0.4Mpa     0.4Mpa
Appearance size(length*width*height mm)1.25*0.85*1.52.0*0.85*1.5
Equipment weight about 200tons GKabout 200tons GK
