Suzhou Oushida Hot Melt Machinery Equipment Co., Ltd.
18 years of experience in R&D and production of hot melt adhesive spraying equipment and automation equipment
18 years of experience in R&D and production of hot melt adhesive spraying equipment and automation equipment
Widely used in automobile headlight and taillight, windshield, car-door manufacturing and auto-interior, air filter, caps, footwear making, electronic toys, medical protective clothing, non-woven composite and other breathable lamination products. Supporting equipment to the Hot melt adhesive spraying and roller coating composite equipment.

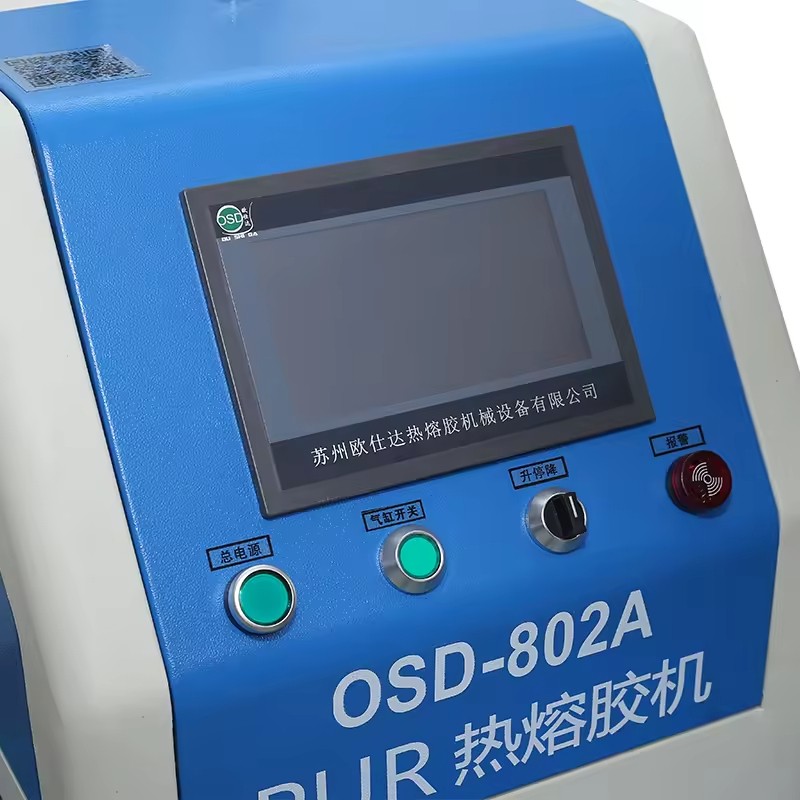

1. Touch screen temperature control system, temperature control accuracy ± 1 °,Chinese and English screen switching.
2. Timing switch function (i.e.7-day time control). Heat preservation standby settingfunction, reduce energy consumption.
3. Precision gear pump, stable output of glue. Lack of glue alarm function to ensure continuous glue supply.
4. Inveter protecion funclion, when the actual temperature of the rubber tank does not reach the set temperature value, (motor) motor does not work, it plays a protective role, prolongs the service ife of the equipment and avoids the economic losses caused by employees' illegal operation.

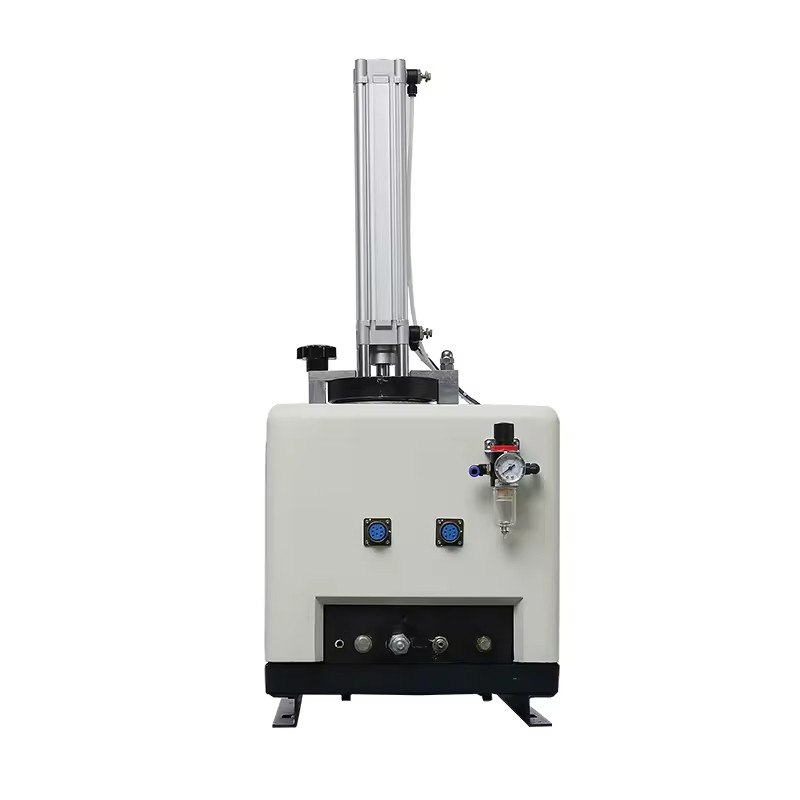

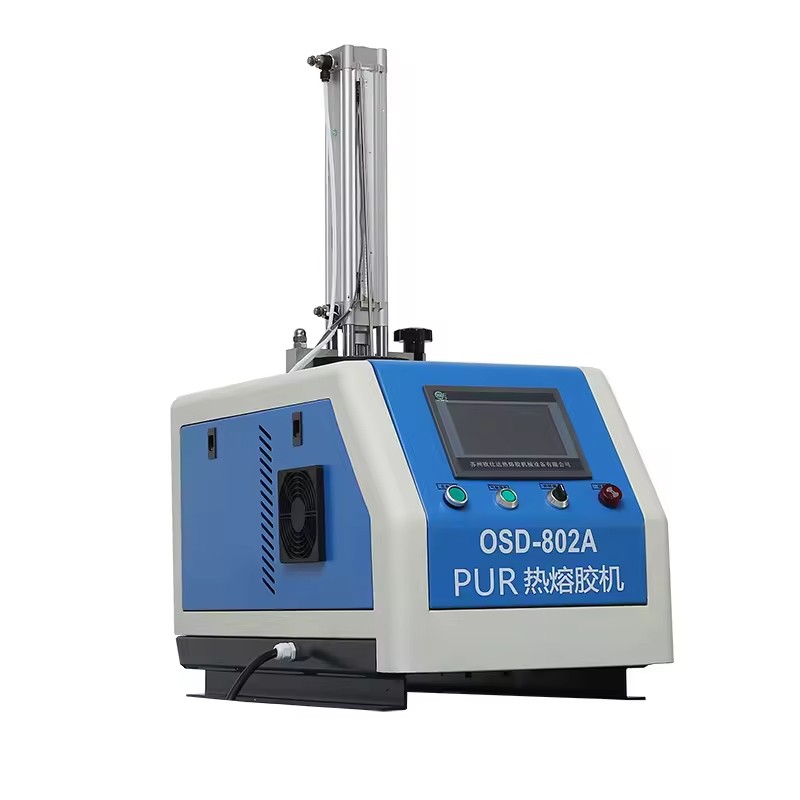

Model | OSD-802A |
Voltage | 220V |
Frequency | 50/60HZ |
Power | 2800W |
Hopper Capacity | 2kg |
Melt Rate | 5kg/h |
MAX.CPS | 1,000-20,000CPS |
Rang of Temperature | <=250℃ |
Weight | 60kg |
Overall Size | 720mm*410mm*640mm |
Up to hoses number | 1-2 pcs |
Sensor | K Type |
Gear Pump | 6ml/Tr. |
Barrel Diameter | 128mm |
