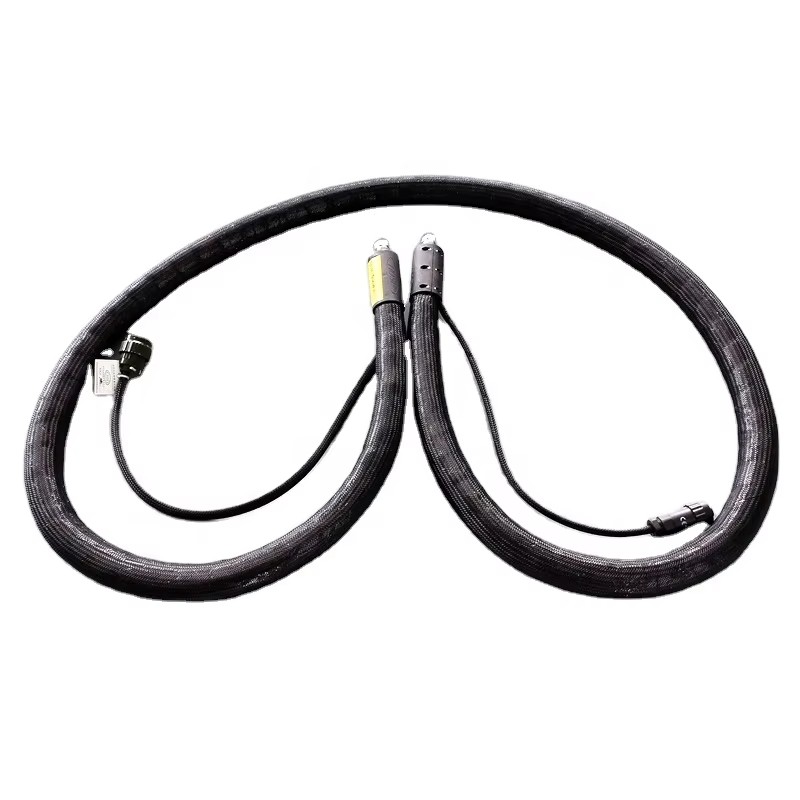

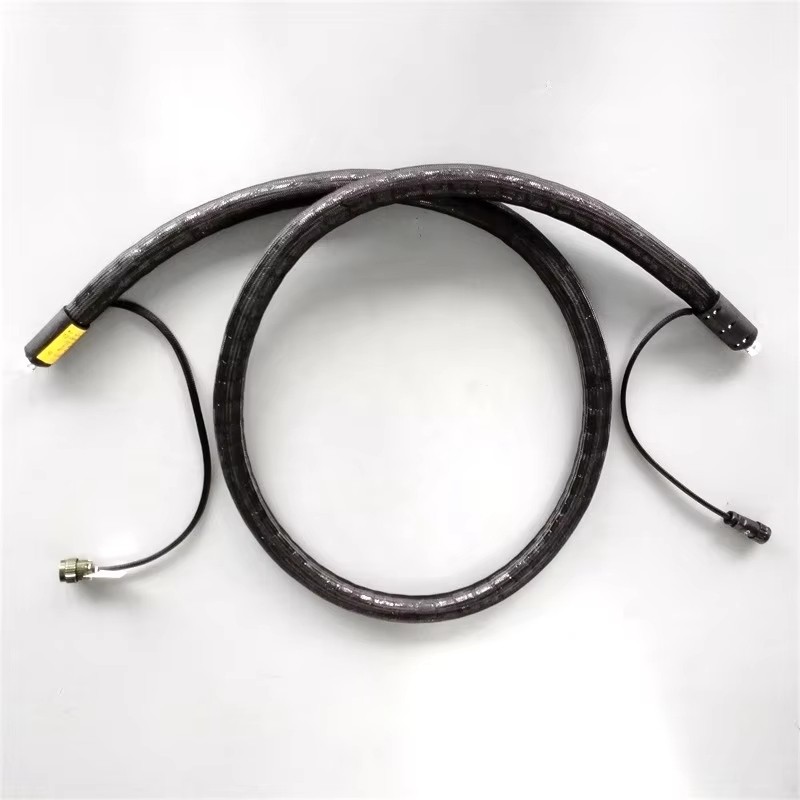

OSD-26A Hot Melt Glue Hose

Feature

1. The inner liner adopts imported Teflon tube, which has good flexibility, anti-sticking and high temperature resistance (up to 250 degrees), which can greatly reduce the carbonization phenomenon;

2. Using American heating wire and high temperature resistant wire, the heater is evenly wrapped around the outer wall of the throat, with good insulation and uniform heat conduction and high temperature resistance;

3. Use high-quality insulation materials to ensure that the throat insulation performance.

4. Good bending performance,folding resistance, relying on high-quality materials, constant heating wire and high temperature resistant wire, and reasonable processing technology design, the maximum bending radius can reach 25cm.

5. Length and other related parameters can be manufactured according to customer requirements.

6. Can be customized according to user needs applied to all the world's hot melt adhesive machine.

Technical Parameters

Model	OSD-26A
Inner diameter of tube	6-25mm can be customized
Pipe outside diameter	40±3mm
Electricity demand	AC220V/50HZ
Power	120W/Meter
Temperatures Sensor	K type/PT100/NI120
Innermost material	Teflon hose(import)
Temperature	MAX 250℃
Min bending radius	250mm
Spec	0.5-15m
Practicability	Can be used with variety of brand melters
