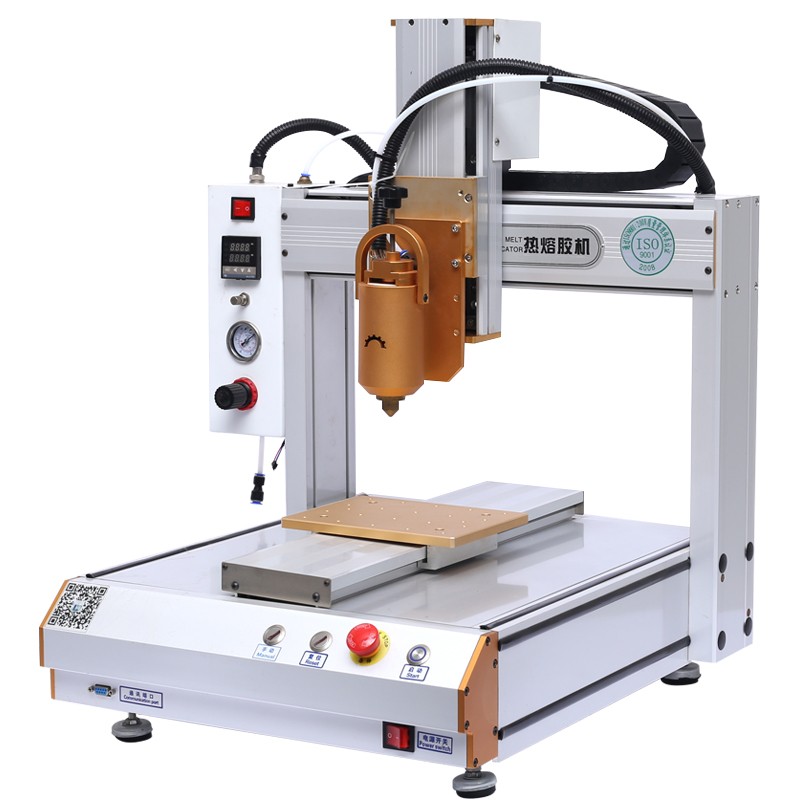

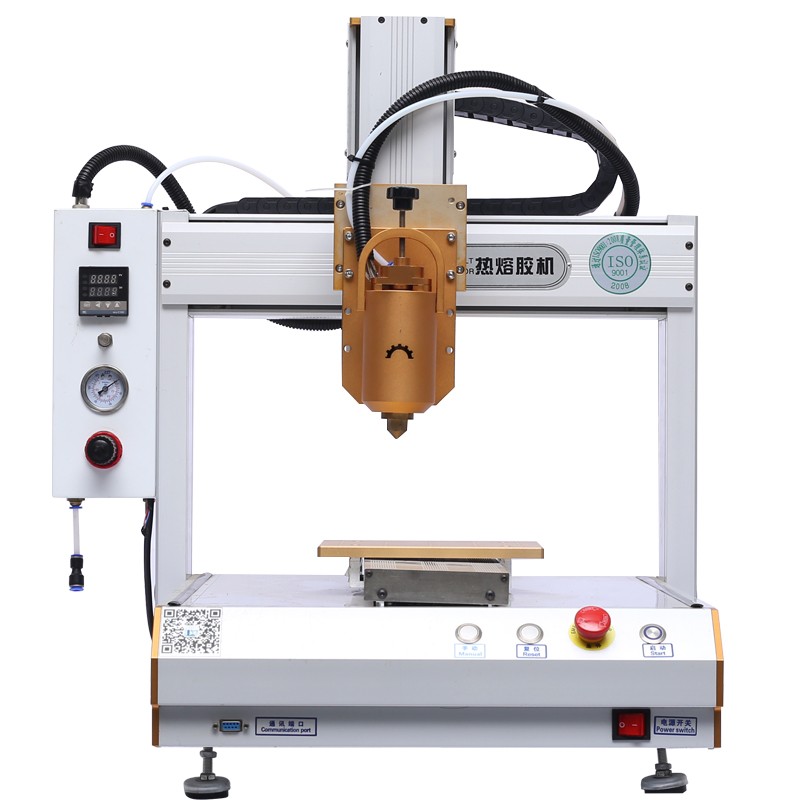

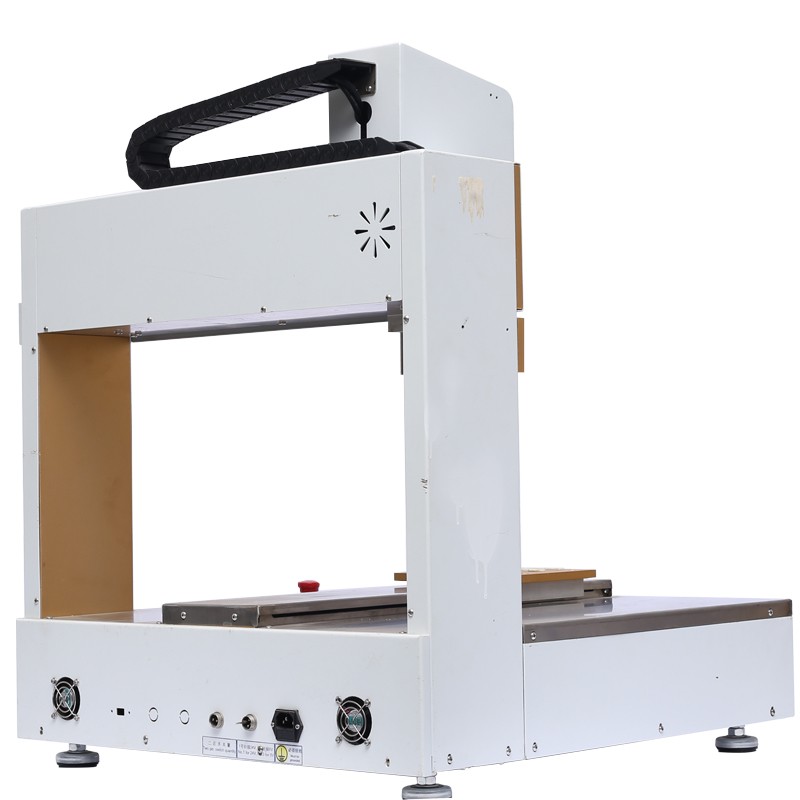

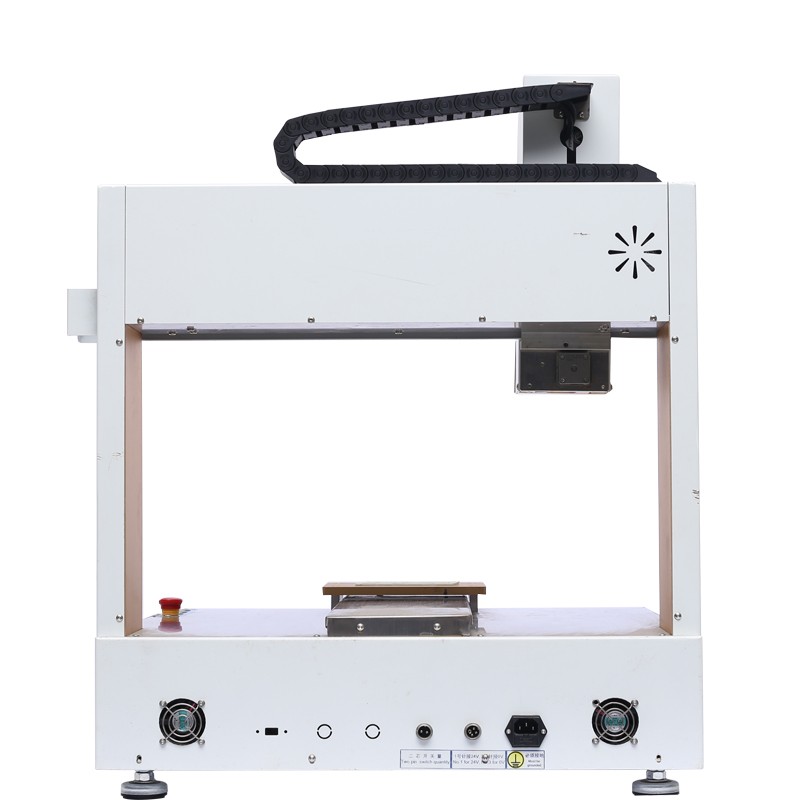

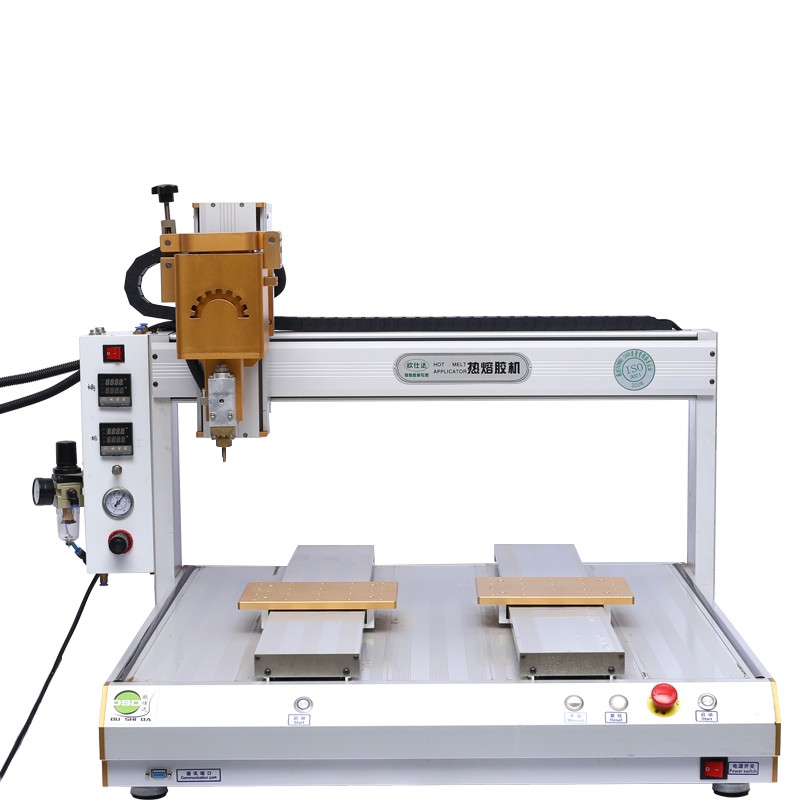

1. The three-axis hot-melt adhesive automatic dispensing machine can operate on a single machine without external computer. It is easy to install and operate.
2. Through the hand-held programmer programming, realize the precise positioning and dispensing control of three-axis linkage, realize the spatial linear interpolation or two axis arc interpolation.
3. The automatic dispensing machine has trapezoidal and S-shaped curve acceleration and deceleration functions, which can prevent the stacking and accumulation of glue in sharp turns, and make the gluing area more perfect.
4. Online teaching function of dispensing and movement mode; it can easIly complete matrix copy, offset modification, correction point setting of various paths, and program transmission between different machines.
5. It can store multiple independent running programs, which can be called quickly when it is used again without reprogramming.
6. Simple programming method, that is learning and using, can be used without professional training,learing operation and maintenance issimple and fast.
Model | OSD-831 | OSD-841 | OSD-861 |
XYZ Operating | 300*300*150mm | 400*400*150mm | 600*600*150mm |
Machine Size | 450(L)*450(W)*450(H)mm | 550(L)*550(W)*550(H)mm | 750(L)*750(W)*550(H)mm |
Max. Load Y/Z | 10kg/3kg | 10kg/3kg | 10kg/3kg |
Max. Moving Speed | 600mm(XY)/100(Z) | 600mm(XY)/100(Z) | 600mm(XY)/100(Z) |
Driving Mode | Stepper motor+conveyer belt+Linear guide rail | Stepper motor+conveyer belt+Linear guide rail | Stepper motor+conveyer belt+Linear guide rail |
Positioning Accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Program Storage Quantity | 99 pcs | 99 pcs | 99 pcs |
Programming Unit | LCD Teaching box | LCD Teaching box | LCD Teaching box |
Working mode | 3-axis linkage, point-to-point, circle drawing, continuous, discontinuous and other irregular graphics | 3-axis linkage, point-to-point, circle drawing, continuous, discontinuous and other irregular graphics | 3-axis linkage, point-to-point, circle drawing, continuous, discontinuous and other irregular graphics |
Extend IO | 4 output signal | 4 output signal | 4 output signal |
Power | AC220V 50/60Hz 3kw | AC220V 50/60Hz 3kw | AC220V 50/60Hz 3kw |
Working Temperature | 0-40℃ | 0-40℃ | 0-40℃ |
Weight | 50kg | 55kg | 65kg |
