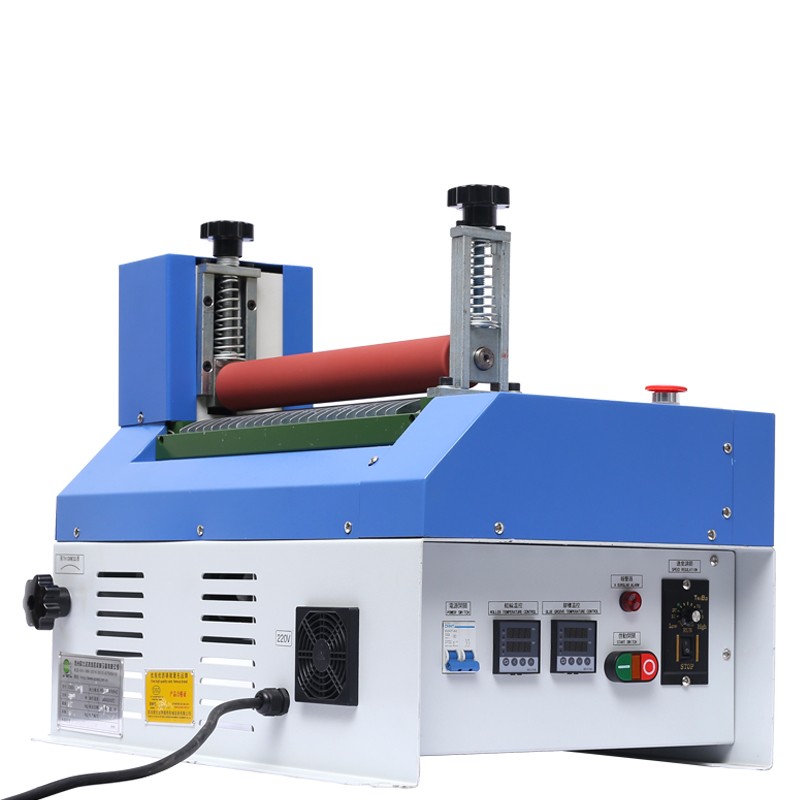

OSD-300A/400A/400B Hot Melt Roller Machine

Adopt PID digital temperature control in Chinese and English, intuitive and convenient operation, high-precision K-type temperature sensor, accurate temperature control. Progressive pre-heating melting tank design, first into the first melt, coated with Teflon anti-stick coating, energy consumption, reduce the phenomenon of plastic carbonization, can maintain the best quality of glue.

Share this:

Features



Adopt PID digital temperature control in Chinese and English, intuitive and convenient operation, high-precision K-type temperature sensor, accurate temperature control.

Progressive pre-heating melting tank design, first into the first melt, coated with Teflon anti-stick coating, energy consumption, reduce the phenomenon of plastic carbonization, can maintain the best quality of glue.

Each temperature zone independently controls temperature regulation, segmental heating, temperature zone parameters, and Chinese digital cycle display.

Heat preservation standby setting function, according to the actual production requirements to set the insulation temperature, to prevent rubber carbonation, External chassis design, beautiful and generous, but also easy to repair and maintence.

The glue spraying speed is fast, the strength is strong, stable and even.

The plastic way: spiral spray and point, hit the strip.


Technical Parameters

ModelOSD-300AOSD-400AOSD-400B
Voltage220V220V220V
Frequency50/60HZ50/60HZ50/60HZ
Power2500W3000W3000W
Thnk capacity3kg4kg4kg
Max Melt Rate3kg/h4kg/h4kg/h
MAX.CPS20,000CPS20,000CPS20,000CPS
Rang of Temperature<=250℃<=250℃<=250℃
Weight55kg65kg60kg
Overall Size500mm*450mm*480mm660mm*460mm*550mm660mm*460mm*1360mm
