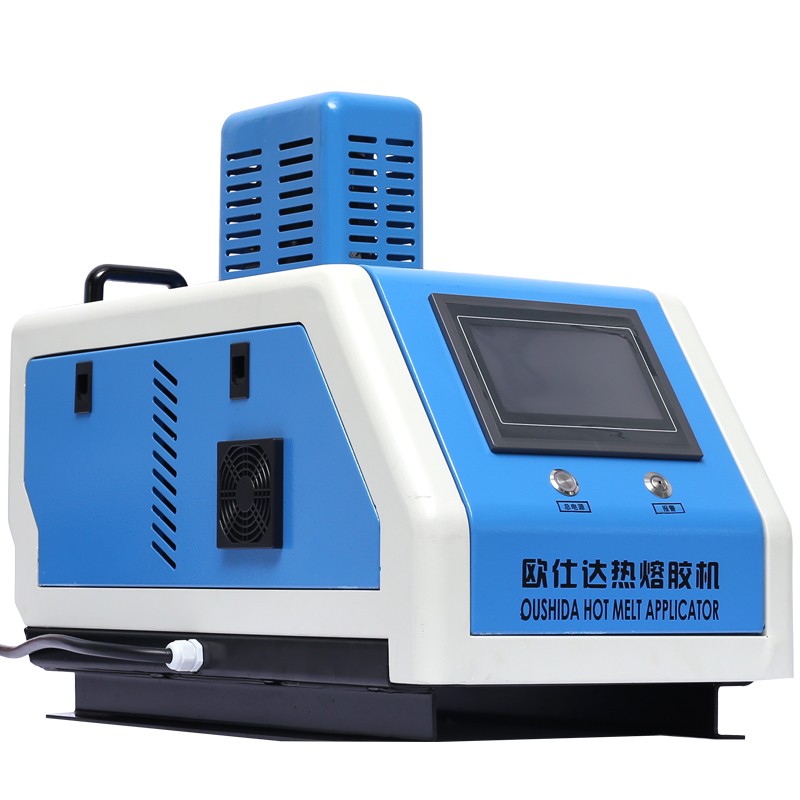

OSD-105A Hot Melt Glue Equipment

 1) Small light, multiple-function, and space-saving.  2) Mist Spraying in vamp, inner, heel of shoes. 3) Optional scraper nozzle (2-10mm wide) can replace double-sided tape.

Share this:

Feature

 1.Using PLC temperature control system, LCD touch screen display, intuitive and convenient operation, accurate temperature control.

 2.The PLC control system of this machine is also attached with glue spraying control program, without external glue spraying controller, with automatic speed and glue quantity tracking function, which can easily realize various glue spraying requirements of customers' products in the assembly line and automatic equipment.

3.The design of progressive preheat melting tank,internal coating of imported DuPont Teflon anti sticking coating, low energy consumption, reduce glue carbonization phenomenon, can maintain good glue quality.

4.Heat preservation and standby setting funcion can set the heat preservation temperature according to the actual production requirements, prevent glue carbonization, reduce power consumption, and shorten the heating time due to shift change or noon break.

5.When the actual temperature exceeds the set value, the main power supply will automatically turn off.

 6.Timing switch function, namely 7-day time control function. The machine can be set to run and shut down automalically according to the working hours of workers every day.

 7.The double-layer 100 mesh filter is adopted to reduce the clogging of the nozzle. The new guiding reflux device makes the glue pressure adjustment more accurate and stable.

8.The frame type self buckle shell design is beautiful and easy to repair and maintain.

9.High precision imported gear pump, stable output and high pressure.

10.The inverter protection function, when the actual temperature of the rubber tank does not reach the set temperature value, the motor does not work. plays a protective role, prolongs the service life of the equipment and avoids the economic losses caused by the illegal operation of employees.


Technical Parameters

ModelOSD-105A
Voltage220V
Frequency50/60HZ
Power2000W
Hopper Capacity5 kg
Melt Rate5kg/h
Working CPS1000-20000 CPS
Range of Temperature≤250℃
Weight45kg
Overall Size680*360*570mm
Up to hoses 1-2
SensorK Style
Gear PumpGear Pump 5.44cc/tr
