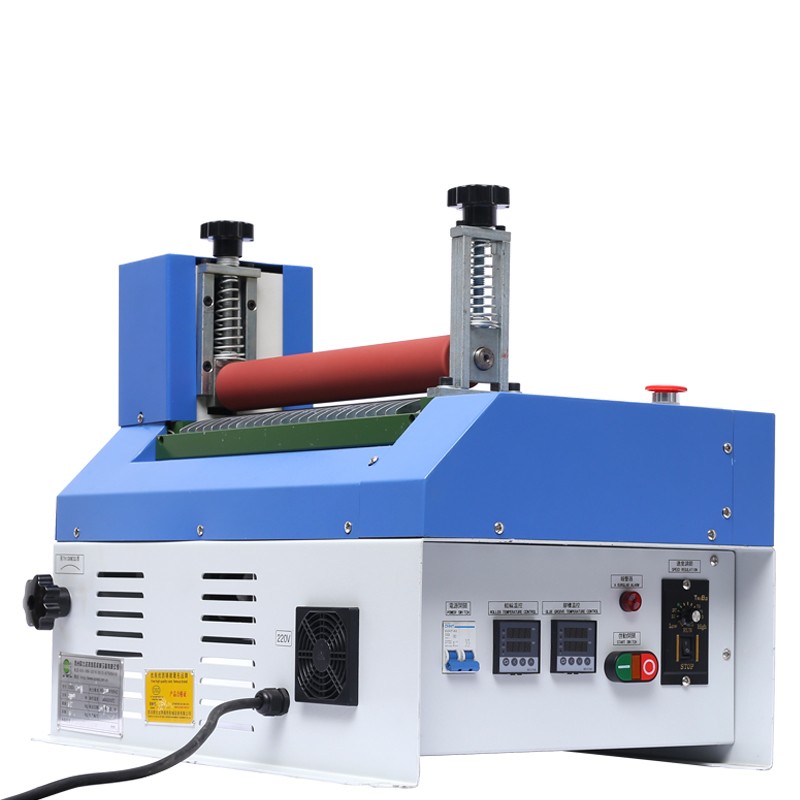

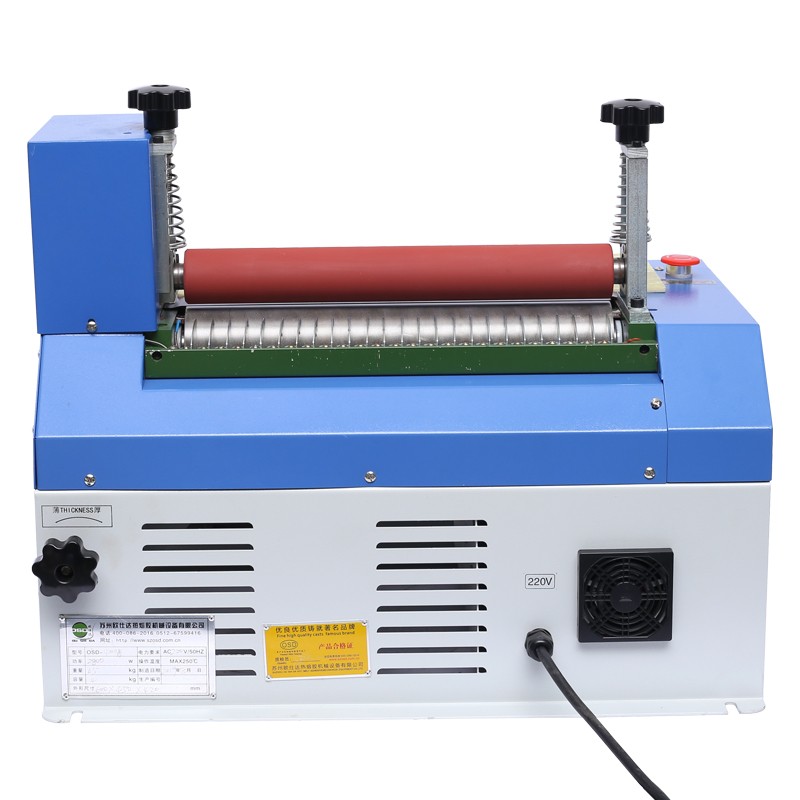

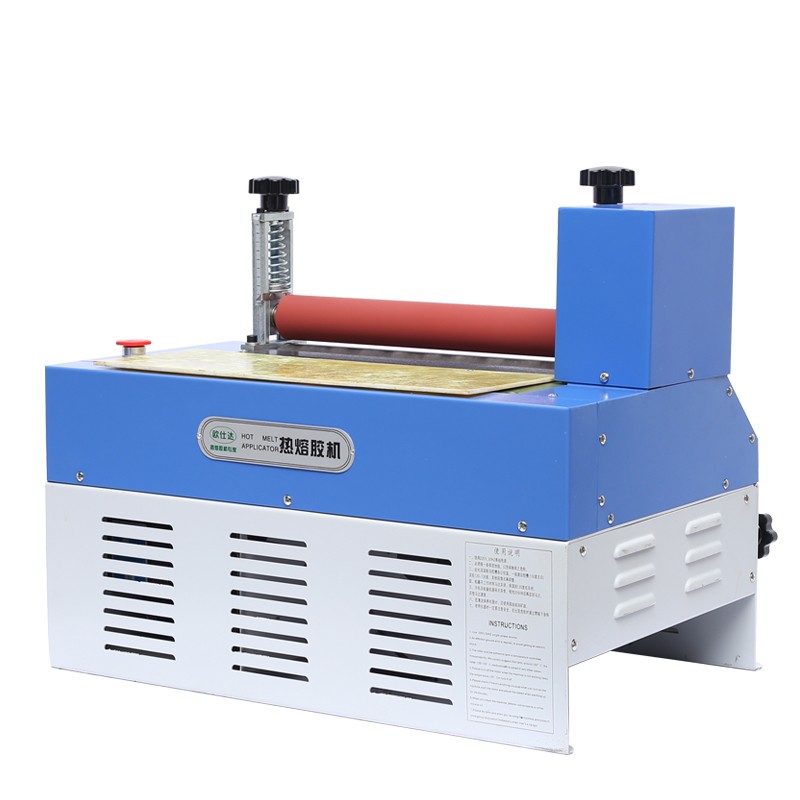

OSD-400A Hot Melt Roller Machine

APPLICATION: Footwear, paper products, printing, luggage handbags, furniture, photo album cardboard, foam packaging materials, non-woven fabrfic composite industries

Feature

1. The key parts of the company's EPE gluing machine are CNC precision machining. The squeegee blade is adjusted by copper and the amount of glue is adjusted evenly.

2. The use of branded motors and bearings has long service life, low failure rate, and stable and reliable quality.

3. Progressive pre-heating melting tank design, with Teflon anti-sticking coating inside,low energy consumption, reducing the phenomenon of plastic carbonization, and can maintain the best quality of the glue.

4. Individual temperature control in each temperature zone, segmented plus Temperature, temperature zone parameters, Chinese digital cycle display.

5. Heat preservation standby setting function, according to the actual production requirements to set the insulation temperature, to prevenr rubber carbonation, reduce energy loss, shorten the heating time.

6. External chassis design, beautiful and generous, but also easy to repair and maintenance.

Technical Parameters

Model	OSD-400A
Voltage	220V
Frequency	50/60HZ
Power	3000W
Thnk capacity	4kg
Max Melt Rate	4kg/h
MAX.CPS	20,000CPS
Rang of Temperature	<=250℃
Weight	65kg
Overall Size	660mm460mm550mm
