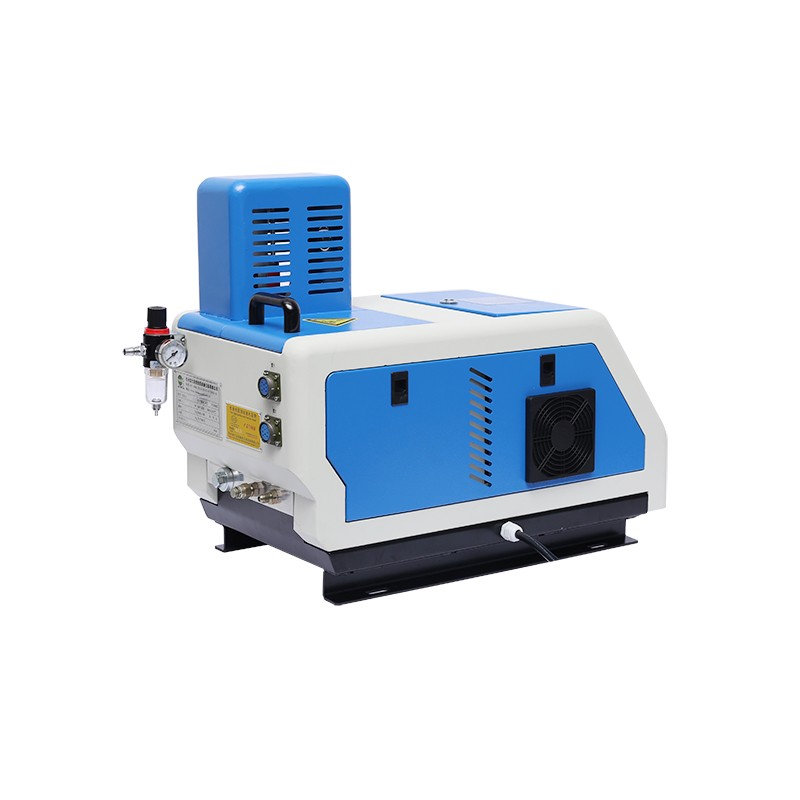

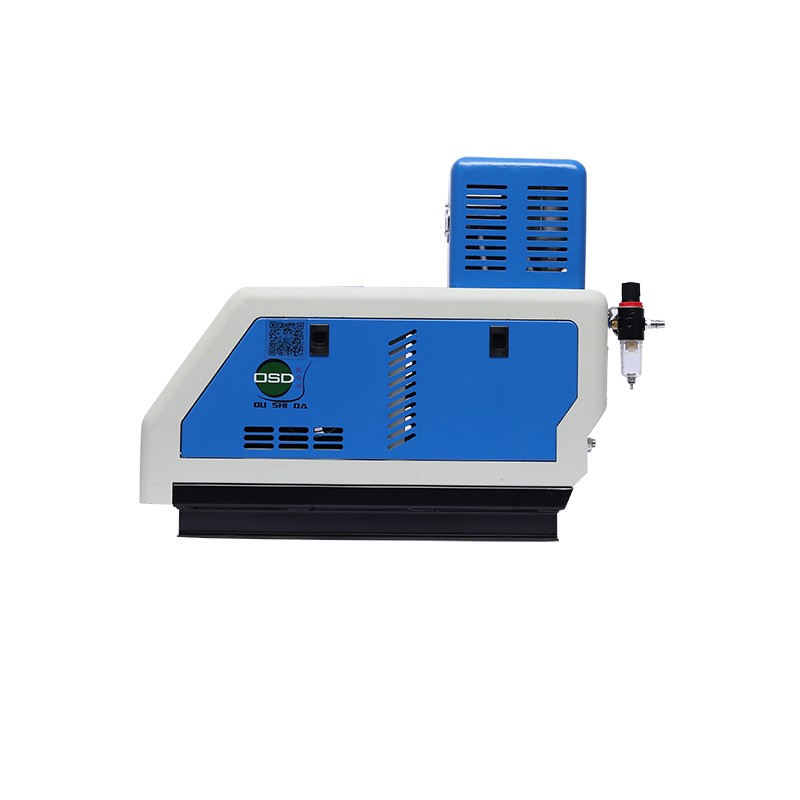

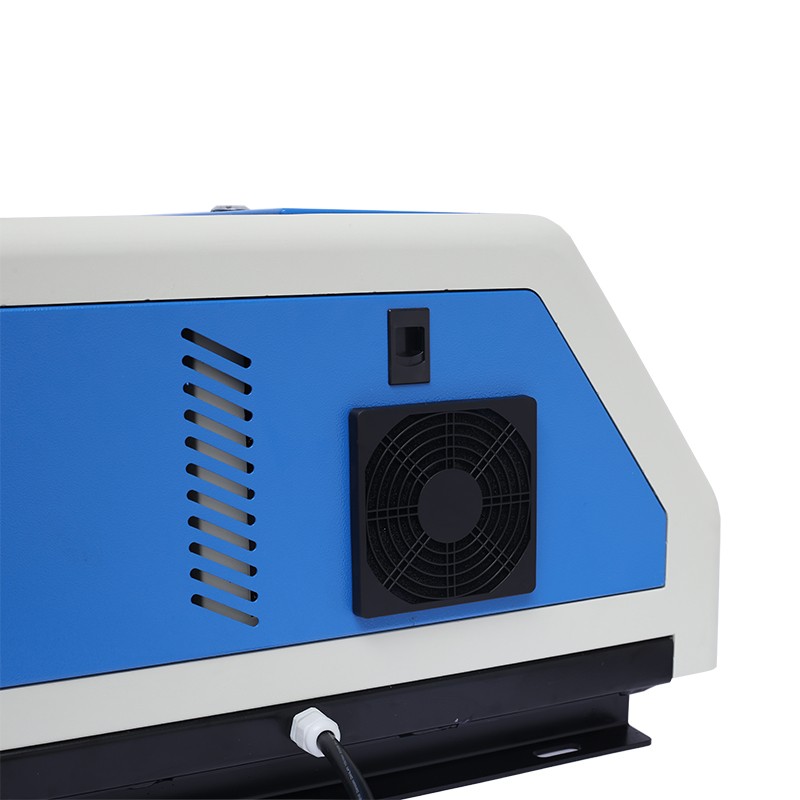

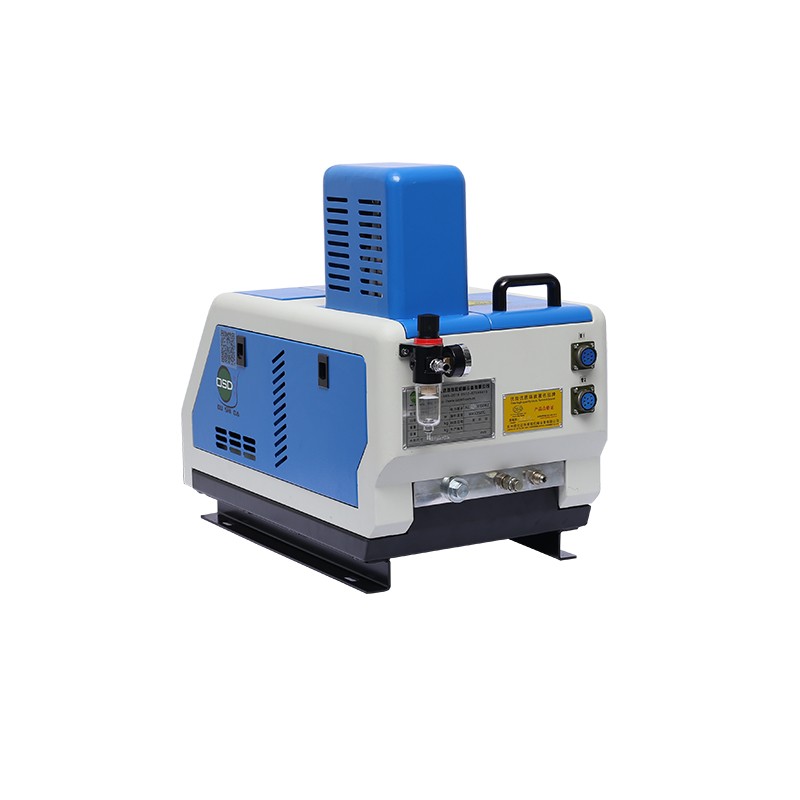

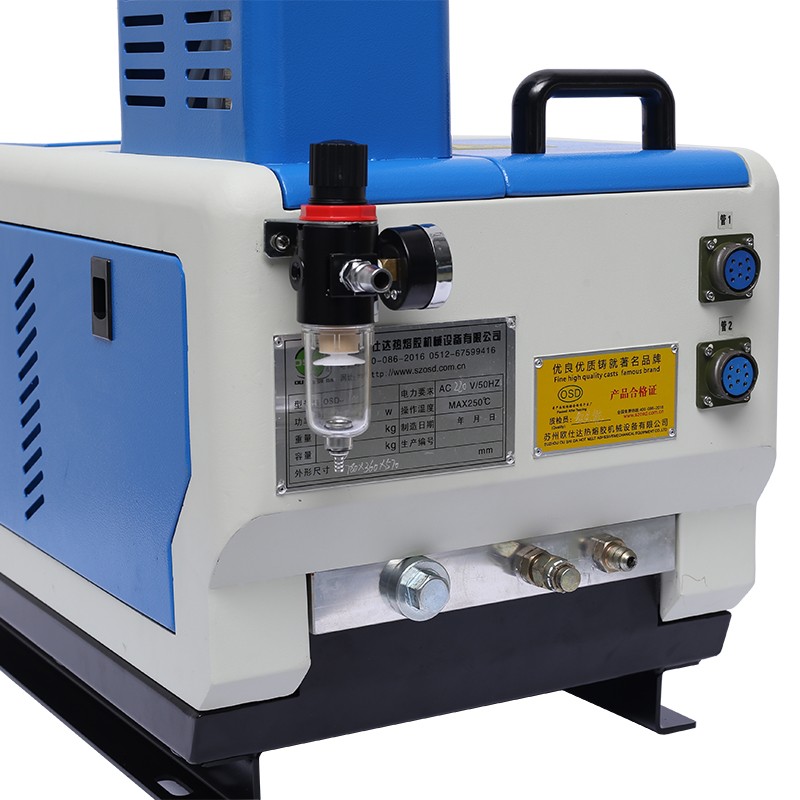

OSD-106 Hot Melt Glue Machine

 1) Small light, multiple-function, and space-saving.  2) Mist Spraying in vamp, inner, heel of shoes. 3) Optional scraper nozzle (2-10mm wide) can replace double-sided tape.

Share this:

Features

Gluing Method of the hot melt glue systems:

Spot spraying, strip spraying, Mist spraying or scraper nozzle gluing



Application of the hot melt glue equipment:

Widely used in footwear, packaging, woodwork, textile, toy-making, leather wares, non-woven, electronics , electrical instruments and other industry.



Features of the hot melt glue machine:

 1) Small light, multiple-function, and space-saving.

 2) Mist Spraying in vamp, inner, heel of shoes.

3) Optional scraper nozzle (2-10mm wide) can replace double-sided tape.

4) Twin hard gluing Pipe/nozzle assembly cost

5) More efficient and more mobile


Technical Parameters

ModelOSD-106
Voltage220V
Frequency50/60HZ
Power2000W
Hopper Capacity6kg
Melt Rate6kg/h
MAX.CPS1,000-20,000CPS
Rang of Temperature<=250℃
Weight45kg
Overall Size780mm*360mm*570mm
