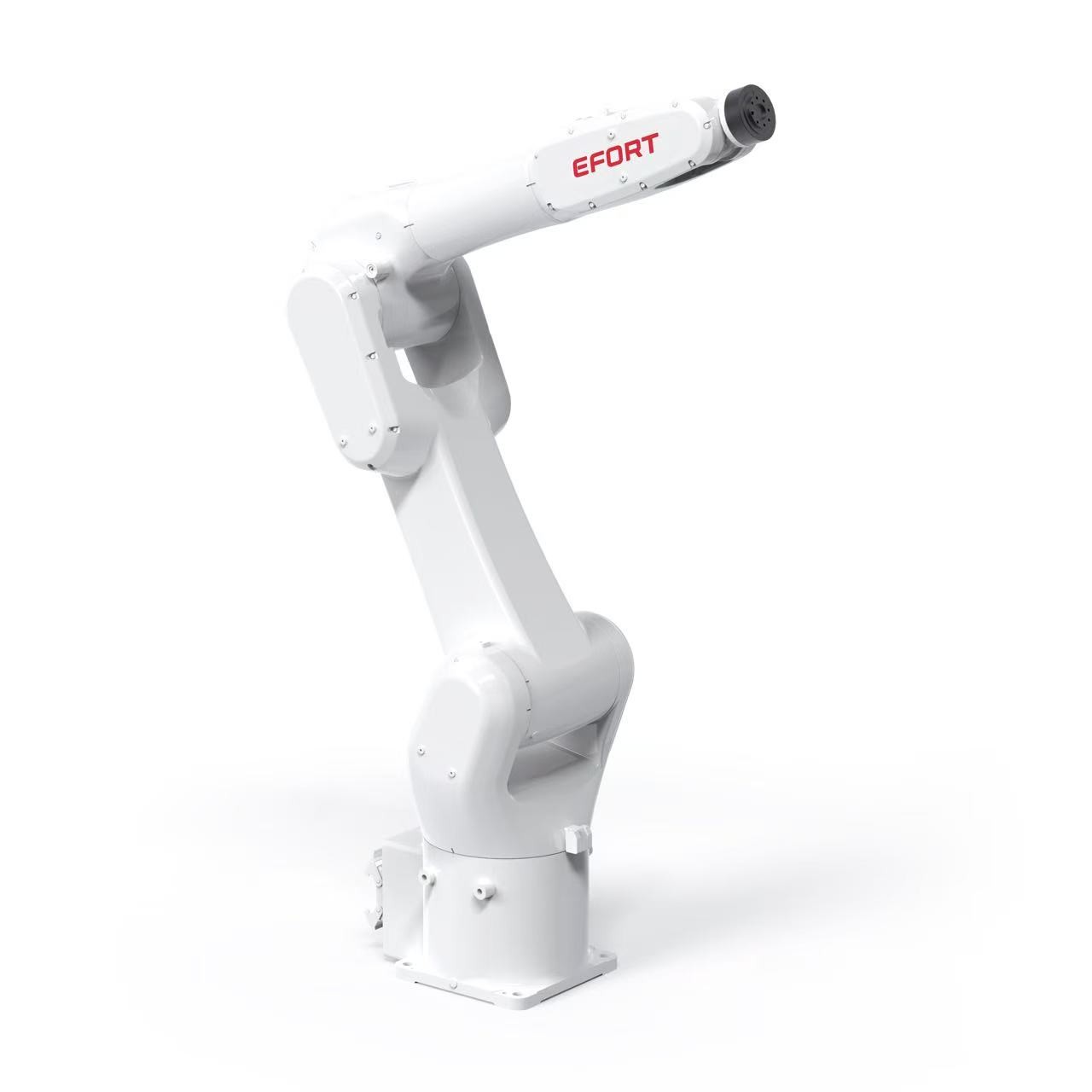

OSD-1400B Hot Melt Adhesive Articulated Robot Dispenser

Feature

1. The robotic arm can achieve micrometer level accuracy, ensuring strict control of glue volume, path, and position, suitable for precision electronics.

2. High repeatability stability, avoiding errors caused by artificial fatigue, and improving product yield.

3. Working continuously for 24 hours, the speed can reach 3-5 times that of manual labor, shortening the production cycle.

4. Reduce glue overflow and waste, and save material costs.

5. Support 3D spatial paths (such as sealing car headlight surfaces), small gap dispensing, and multi angle operations to solve processes that are difficult to achieve manually.

Technical Parameters

Model	OSD-1400B
Type	Articulated Robot
Controlled Axes	Six
Wrist transportable quality	12kg
Accuracy of repeated positioning	±0.03mm
Quality	90kg
Reachable radius	1391mm
Main body protection level	IP65 / IP67(Wrist)
Control cabinet protection level	IP20 / IP54(optional)
Drive mode	AC servo drive
Installation method	Ground, wall mounted, ceiling suspended
Installation conditions: ambient temperature	0-45℃
Installation conditions: Environmental humidity	RH≤80%(No condensation)
Installation conditions: vibration acceleration	4.9m/s²(under 0.5G)

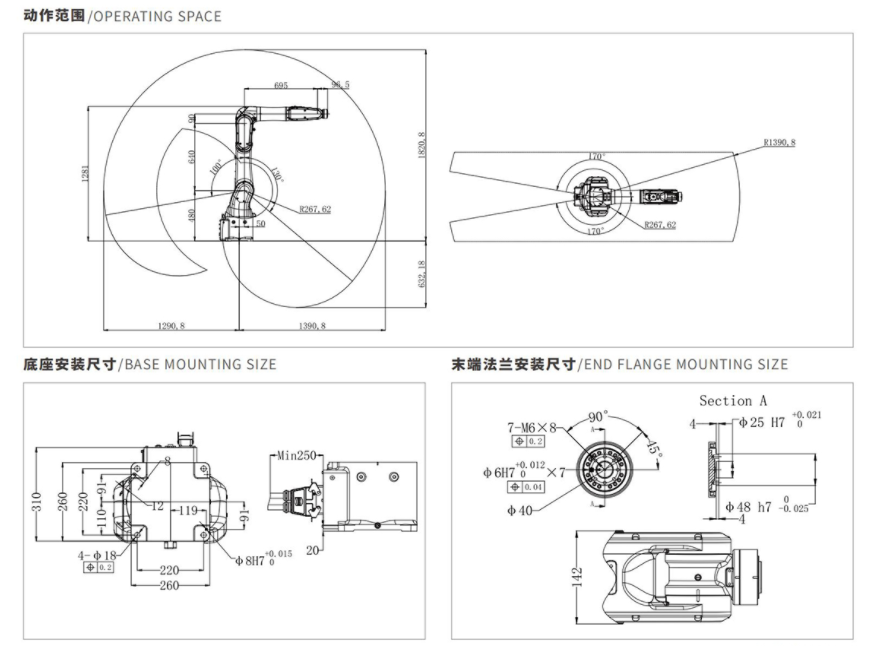

Range of motion	J1	-170°~+170°
	J2	-130°~+100°
	J3	-75°~+193°
	J4	-190°~+190°
	J5	-120°~+120°
	J6	-360°~+360°
Max Speed	J1	200°/sec
	J2	180°/sec
	J3	220°/sec
	J4	400°/sec
	J5	420°/sec
	J6	600°/sec
Allowable torque	J4	25N·m
	J5	25N·m
	J6	12N·m
Allow inertia moment	J4	0.78kg·㎡
	J5	0.78kg·㎡
	J6	0.3kg·㎡
