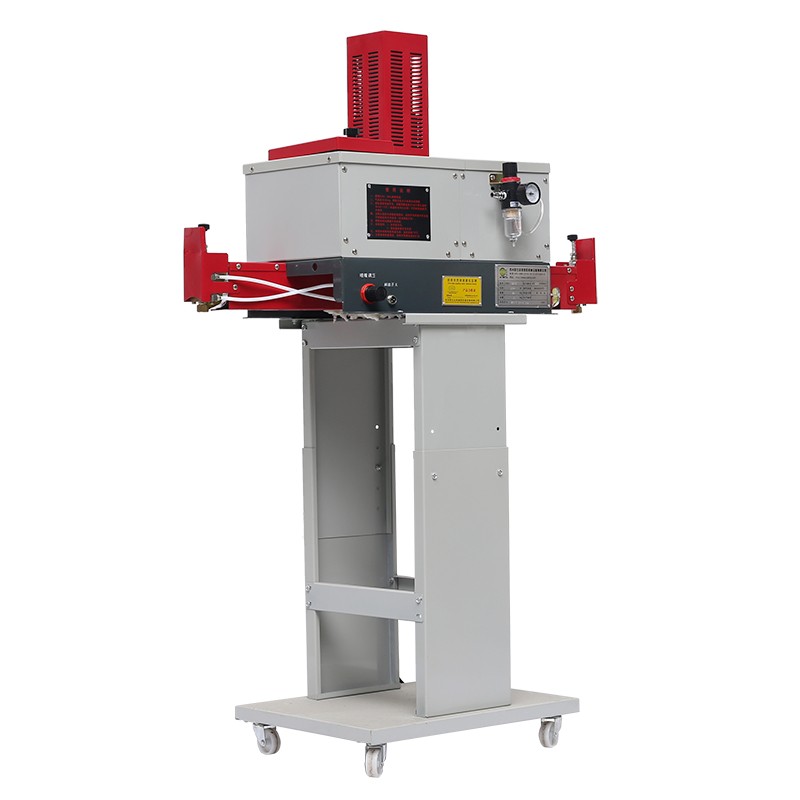

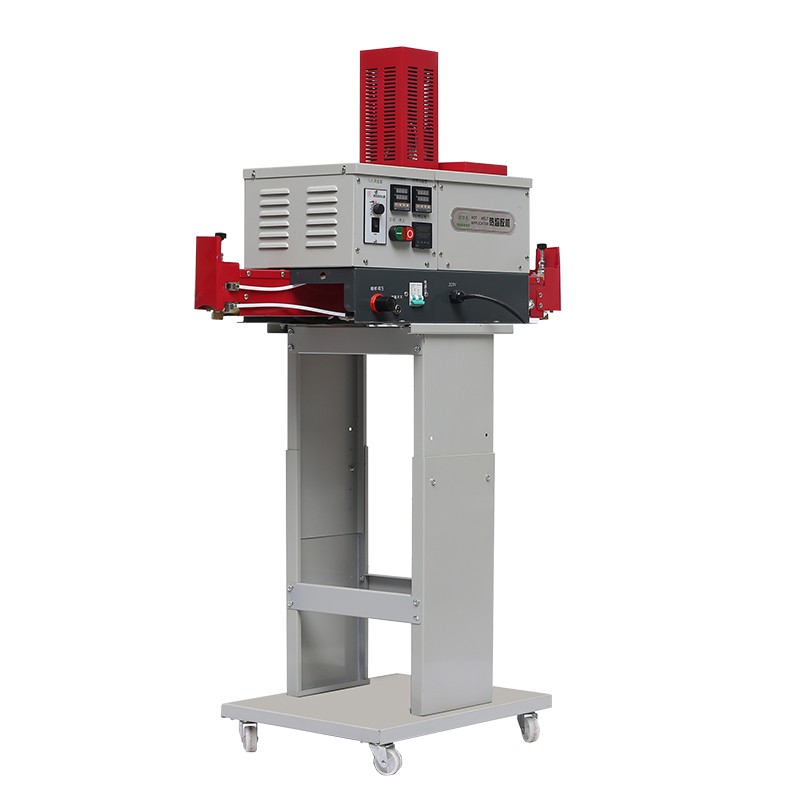

OSD-2206 Hot Melt Glue Dispenser

Share this:

Feature



1. This machine adopts two-stage filtration equipment to reduce nozzle clogging.

2. Progressive pre-heating tank energy-saving design, first into the firstmelt,increase the speed of melt and save energy.

3. Teflon coated anti-stick coating,energy consumption, reduce the phenomenon of plastic carbonation.

4. The glue spraying speed is fast, stable and uniform, and the coating range is easy to control and operate.

5. The timer can control the amount of glue applied each time. You can select multiple time controllers with control time from 0 to 60 seconds.


Technical Parameters

ModelOSD-2206
Frequency50/60HZ
Thnk capacity5kg
Max Melt Rate5kg/h
MAX.CPS1000-20,000CPS
Rang of Temperature<=250℃
Air Pressure1-3kg/cm²
Overall Size850mm*370mm*550mm
Weight40kg
