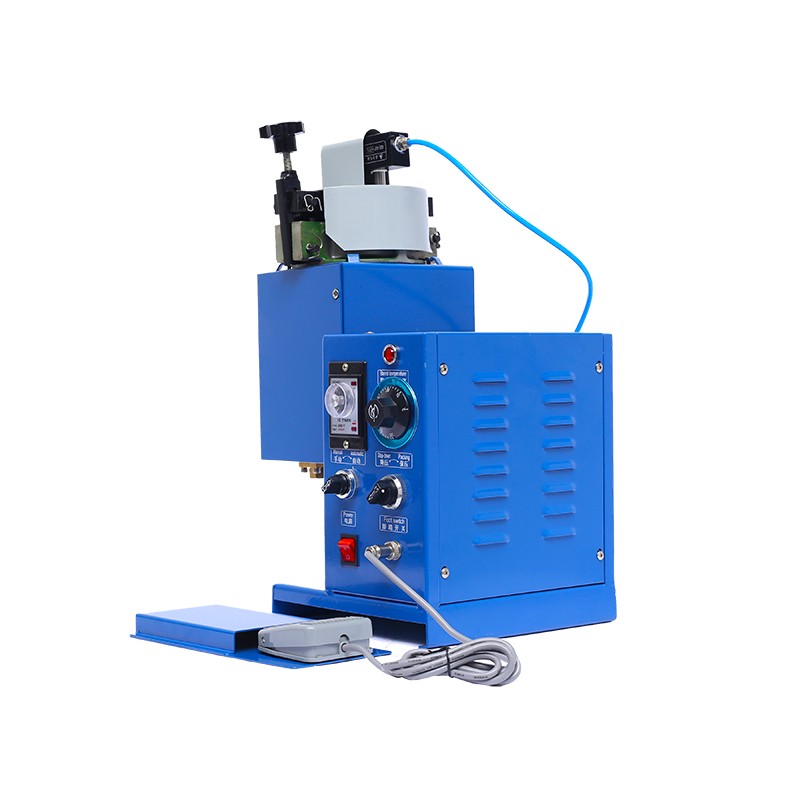

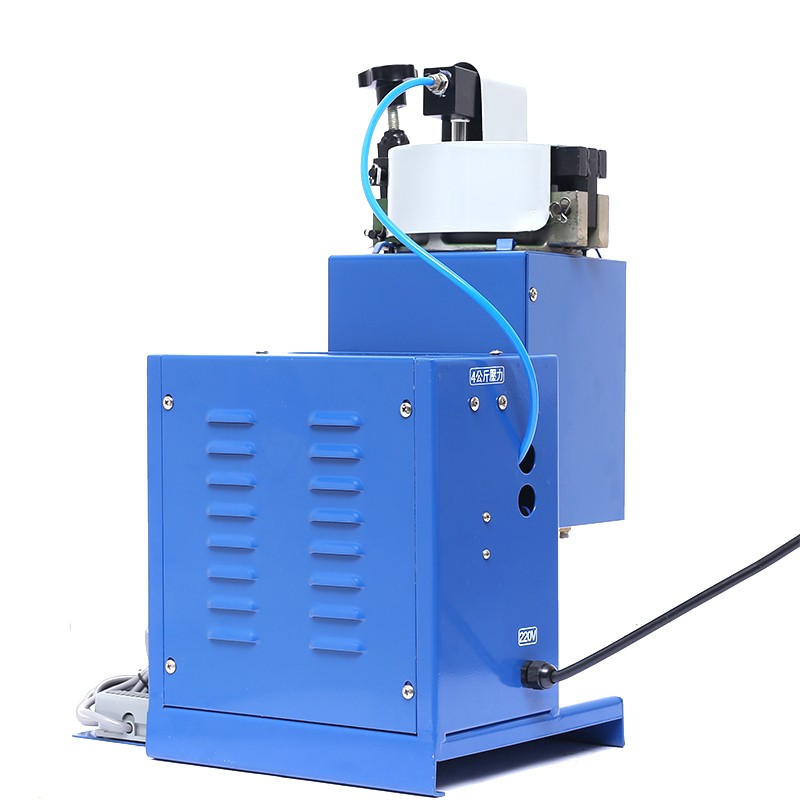

OSD-102A Hot Melt Glue Dispenser

Share this:

Feature



1. Light weight, small size, easy to move. Can be placed on the bench.

2. Easy to open cans, convenient feeding, high safety.

3. Pneumatic power system, Save energy and effectively reduce the production cost of the company.

4. Simple structure and easy maintenance. Just follow the instructions for use and maintenance of the manual to maintain it yourself.

5. Pressure and flow can be adjusted. The spray flow can be controlled freely by the air pressure and the nozzle stroke.

6. Melt rate is fast. Use 800W power and high efficiency insulation device. Save energy and increase melt speed.

7. The failure rate is low. The structure is clear, and the minimum system connection is applied to each component. High reliability.

8. Operating temperature range. The use temperature can be 20°C -200°C, under certain conditions can be used at 260 °C.

9. The timer can control the amount of glue applied each time. You can select multiple time controllers with control time from 0 to 60 seconds.

10. The needle valve controls the glue to instantly shut down and sensitive. Air-opening spring closing method is used, and the switch is sensitive.

11. The low cost of equipment saves the company's early investment.

12. The operation is simple, and the newly-employed employees can independently operate the device with only 10 minutes of training.

13. Improve product performance and grade. Compared with ordinary hot melt glue guns, the product is more firmly bonded and more efficient.

14. Improve efficiency and reduce waste. No need to wait after melted, ready to use. Epoxy does not leak glue, reducing waste.

15. Wide range of applications, notlimited by the type, shape, viscosity, melting temperature, spray method, etc. of hot-melt adhesives.


Technical Parameters

ModelOSD-102A
Frequency50/60HZ
Thnk capacity2kg
Max Melt Ratekgf/cm2
MAX.CPS1000-20,000CPS
Rang of Temperature<=250℃
Air Pressure1-4kg/cm²
Overall Size370mm*350mm*500mm
