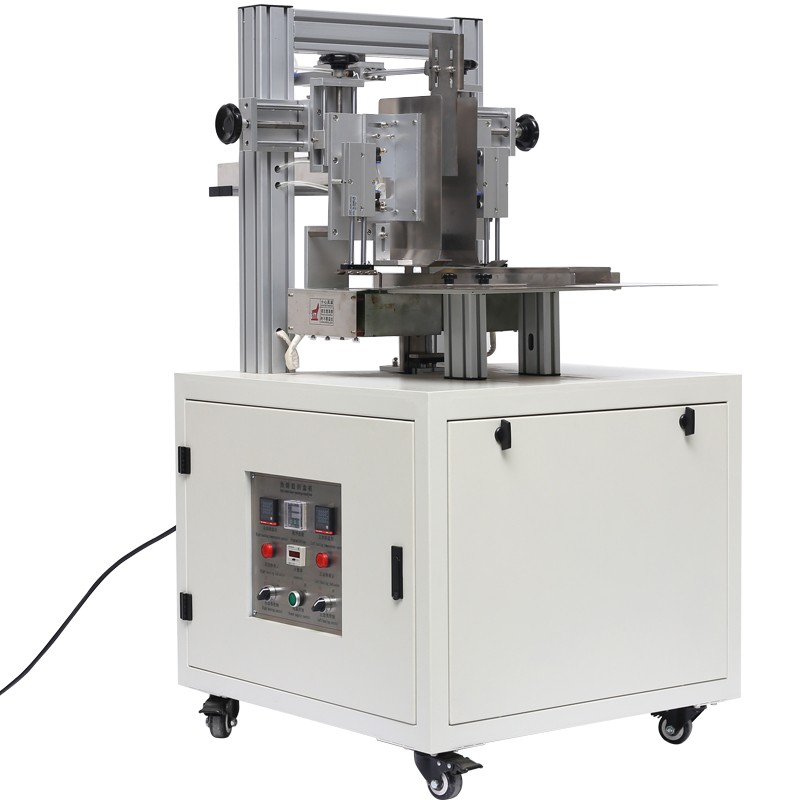

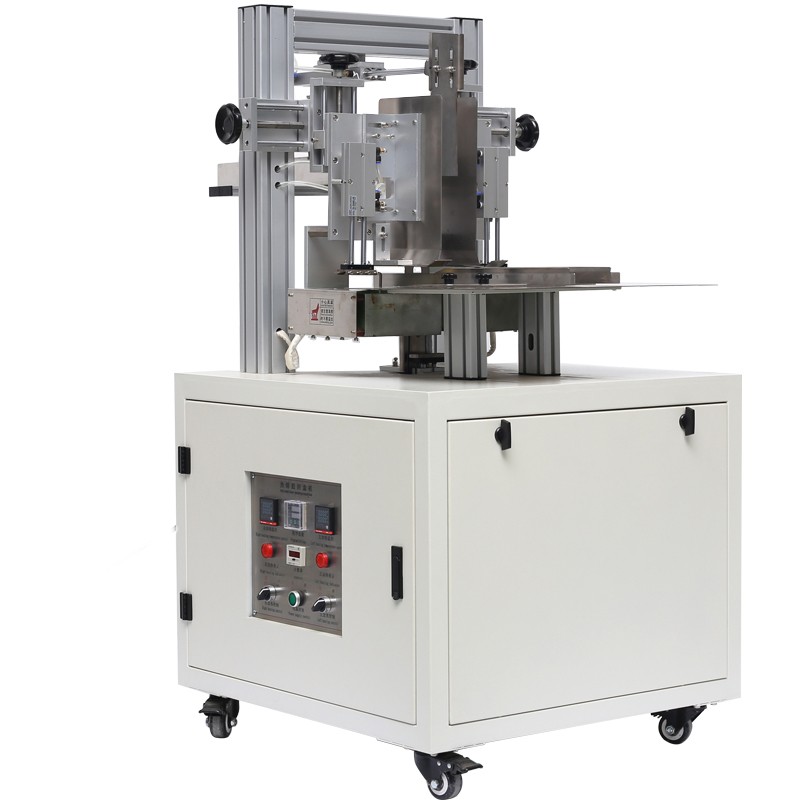

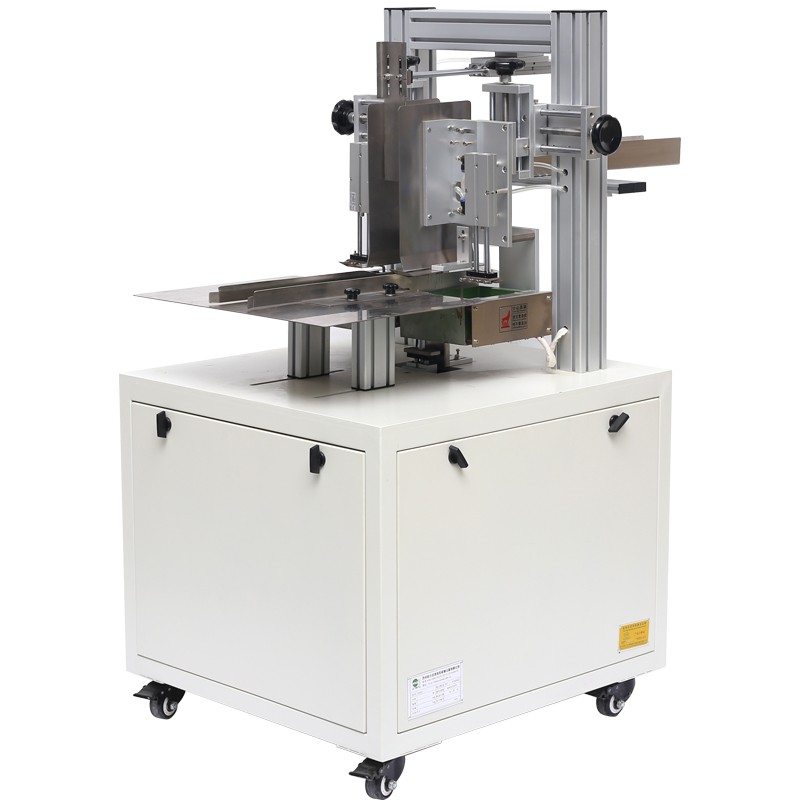

OSD-812Hand Push Hot Melt Box Sealing Machine

Share this:

Feature



1. The machine implements manual material loading, mechanical automatic glue spraying, and sealing.

2. The machine has high efficiency, with a processing capacity of 40-50 boxes/minute, which is 2-3 times more efficient than manual box sealing (low efficiency results in correspondingly high production costs, such as wages generated from overtime work). Now you can adjust the specifications according to the size of the box!

3. The sealing effect is good and the efficiency of the machine is sustainable, while manual labor cannot. If the manual efficiency is too high, it will affect the quality and quantity of defective products. If the efficiency is low, it will affect the output. If the output is low, it will waste labor overtime costs.

4. The amount of glue used by the machine is about one-third of that used for manual box sealing, and the amount of glue used is extremely small.

5. The material selection of the whole machine meets environmental protection requirements, and the appearance treatment of the whole machine adopts food grade standards. Stainless steel is widely used as equipment components;

6. The transformation is convenient and fast. The new adjustment position has been changed to a symmetrical handwheel adjustment, reducing the difficulty of adjusting the machine;

7. Simple and stylish appearance;

8. All key components shall be replaced with imported components;

9. Optimize power consumption, in line with the new concept of energy conservation;

10. Simple operation, high efficiency, and low investment cost. Suitable for all paper box packaging that requires gluing and sealing. For example, the sealing of packaging paper boxes such as biscuit boxes, food boxes, medicine boxes, tissue boxes, etc. Box quantity: 40-50 pieces/minute Paper box size: length (70mm-300mm) * width (40mm-200mm) * height (25mm-120mm) Box specifications can be customized.


Technical Parameters

ModelOSD-812Hand Push
Production speed40-50 boxes/min
Packing box specifications(length*width*height mm)(80-300)*(50-200)*(20-90)
Installed power3.6kw(220v 50Hz)
  Air source   0.4Mpa
Appearance size(length*width*height mm)1.25*0.85*1.5
Equipment weight about 150kg
