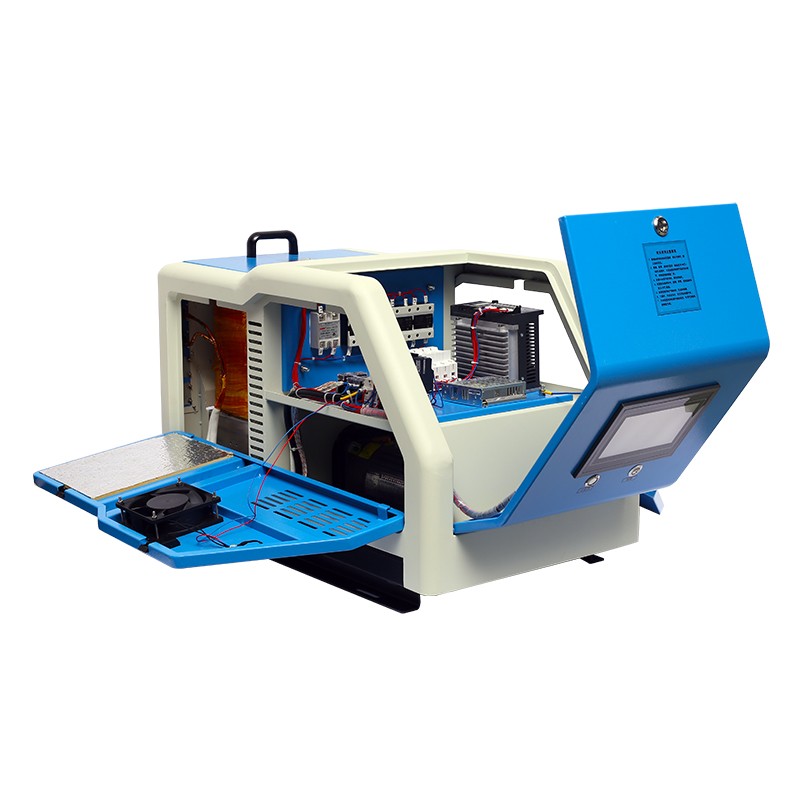

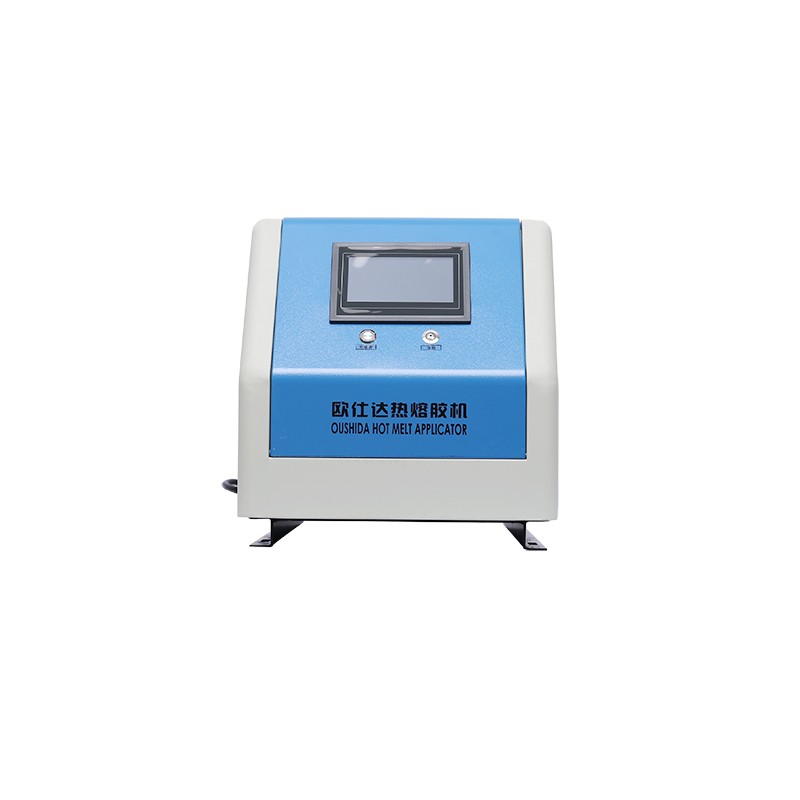

Adopt PID digital temperature control in Chinese and English, intuitive and convenient operation, high-precision K-type temperature sensor, accurate temperature control. Progressive pre-heating melting tank design, first into the first melt, coated with Teflon anti-stick coating, energy consumption, reduce the phenomenon of plastic carbonization, can maintain the best quality of glue.
Features of the hot melt glue machine:
1)Small light, multiple-function, and space-saving.
2) Mist Spraying in vamp, inner, heel of shoes.
3) Optional scraper nozzle (2-10mm wide) can replace double-sided tape.
4) Twin hard gluing Pipe/nozzle assembly cost
5) More efficient and more mobile
| Model | OSD-108A |
| Voltage | 220V |
| Frequency | 50/60HZ |
| Power | 2800W |
| Hopper Capacity | 10kg |
| Melt Rate | 10kg/h |
| MAX.CPS | 1,000-20,000CPS |
| Rang of Temperature | <=250℃ |
| Weight | 60kg |
| Overall Size | 790mm*360mm*450mm |
